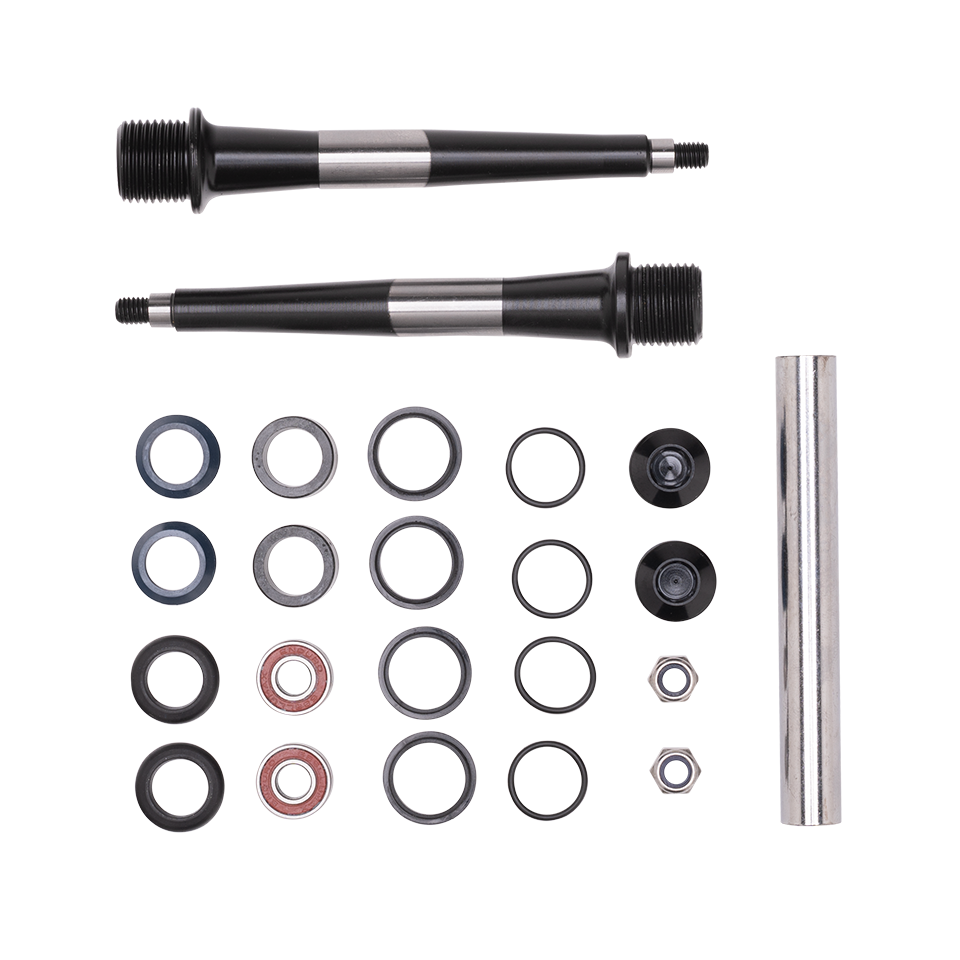

Spindle Kit

SKU: 16067

Spindle replacement kit for clip-in pedals.

Spindle replacement kit for clip-in pedals.

  • The kit includes: 1 pair of spindles
  • Refresh kit: enduro MAX cartridge bearings
  • Igus ll-glide bearings
  • Dss double seal system
  • Internal and external seals
  • Hex alloy end caps
  • O-rings
  • Nuts
  • Sleeve bushings
  • Bearing removal tool
$54.99 USD
/
Size
  • In stock, ready to ship
  • Inventory on the way
Final Sale

Weight (per pair) 119g (Long Spindle) / 106g (Short Spindle)

Compatibility Eggbeater, Candy, Mallet, 5050, Double Shot (Model Years 2010+)

Spindle Material Forged SCM 435 Chromoly Steel

Q Factor 57mm (Long Spindle) or 52 mm (Short Spindle)

Product Support

Support Documents

Overall rating: 5.0 / 5 from 18 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","kit"].

Review highlights

Reviews

Great upgrade for my eggbeater

"Great upgrade for my eggbeater peddles"

— Ric B. (5/5)

Perfect , simple to do

"Perfect , simple to do it and good quality"

— Gabriel L. (5/5)

Wider more stable stance for

"Wider more stable stance for more gravity focus riding. For more pedally bike, the slightly narrower Mallet Enduro would be better."

— Thomas C. (5/5)

Clear instructions and quality parts!

"Clear instructions and quality parts!"

— Justinian B. (5/5)

These spindles are perfect for

"These spindles are perfect for replacing an old worn out set or getting some much needed clearance from the rear triangle! I love rebuilding my old crankbrothers pedals because it’s so simple. I’ve got an old set of candy 3s that I’ve rebuilt at least 5 times and they are still smooth as butter."

— Michael N. (5/5)

the long spindle kit was

"the long spindle kit was perfect for my winter riding needs and the quality and ease of switching was well worth it time and effort"

— Gregg V. (5/5)

Super easy swap, includes all

"Super easy swap, includes all new bearings, gaskets and washers. Fantastic quality"

— jeffrey c. (5/5)

These did exactly what they

"These did exactly what they were supposed to. Took my old beat up Mallet 2 and made them new again. My only qualm would be I didn’t see any clear info on the website as to whether I needed the long or short spindles kit. I had to go to the page for the pedals and cross reference it there."

— Alexander A. (5/5)

Just what I needed with

"Just what I needed with upgrades"

— Russell J. (5/5)

Good quality

"Good quality"

— David A. (5/5)

Q&A

Is this kit compatible with V1 Stamp alloy pedals?
Hi Sebastian, The spindle kit is not compatible with Stamp pedals. Please use the link below to submit a small parts request with our service center, and one of the techs will respond shortly after to assist you. https://crankbrothers.zendesk.com/hc/en-us/requests/new?ticket_form_id=114093998454 Best Regards, Crankbrothers Rider Support
Will this spindle kit work with a mallet dh race pedal from 2015?
Hi Xander, Thanks for your question. The spindle kit is compatible with the Mallet DH Race pedal, circa 2015. That pedal will have come with the longer length option (57mm Q Factor). Cheers, Crankbros Rider Support
Can I install the short spindle on the double shot?
Hi Will, Thanks for your question. The Double Shot pedal is compatible with the short spindle. Cheers, Crankbrothers Rider Support
Hi I've been looking for a tutorial on how to fit the Long Spindle Kit, but can't find one. They are different to the Short Spindle Kit so some guidance would be helpful. Thanks
Hi Jamie, thanks very much for your question. The installation process for the long spindle kit will be the same as the standard spindle length kit. The first link below will guide you to a step-by-step instructional chart for spindle swapping, and it applies to Eggbeater, Candy, Mallet, and Double Shot pedal models. https://www.dropbox.com/s/xy8yw08klk157ic/Spindle%20Kit%20Instructions.pdf?dl=0 The next link will guide you to a tutorial video. The video is more specific to pedal refresh instructions, though the earlier steps of removing the spindle will be relevant and helpful regardless of which pedal model you have. You can ignore the remainder of the video that covers swapping out the bushings and bearings, unless you plan to do that as well. https://www.youtube.com/watch?v=Kllis_A3Fck Cheers!
Looking to extending a Mallet E, and not sure if this kit could be help.
Hi Jose, the long spindle kit will increase your q-factor (stance width) by 5mm's. This will add stability through rough trail sections, and minimize the potential for heel rub on your crank arm and on the chainstay.
