Name: Highline Dropper Post 27.2
Brand: Crankbrothers
SKU: 17151
Price: 249.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$249.99 USD

Tax included.

Quantity

Diameter

27.2

30.9

31.6

34.9

Length

60mm

60mm Long

80mm

80mm Long

100mm

100mm Long

125mm

Low stock - 5 items left
Inventory on the way

{"id":42765380714592,"title":"27.2 \/ 60mm","option1":"27.2","option2":"60mm","option3":null,"sku":"17151","requires_shipping":true,"taxable":true,"featured_image":{"id":37109719924832,"product_id":7708088598624,"position":1,"created_at":"2026-05-28T11:22:27-07:00","updated_at":"2026-05-28T11:22:29-07:00","alt":null,"width":1800,"height":1800,"src":"\/\/www.crankbrothers.com\/cdn\/shop\/files\/Highline_27.2_60mm.png?v=1779992549","variant_ids":[42765380714592]},"available":true,"name":"Highline Dropper Post 27.2 - 27.2 \/ 60mm","public_title":"27.2 \/ 60mm","options":["27.2","60mm"],"price":24999,"weight":1034,"compare_at_price":null,"inventory_quantity":5,"inventory_management":"shopify","inventory_policy":"deny","barcode":"641300171511","featured_media":{"alt":null,"id":28013556760672,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/www.crankbrothers.com\/cdn\/shop\/files\/Highline_27.2_60mm.png?v=1779992549"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

The new Highline dropper post brings together the best features from our lineup into one refined and streamlined design. A lower stack height improves fit and frame clearance, while the easy-install quick-release head makes setup faster and simpler. Available in travel options from 60mm to 125mm, the Highline 27.2 also features a self-contained IFP hydraulic cartridge and durable construction, backed by a 5-year warranty, for long-lasting reliability on every ride.

27.2mm seatpost diameter to fit most XC and gravel bikes
2-bolt quick-connect head
Self-contained IFP hydraulic cartridge
Internal routing
Quick-connect mechanism for ease of cable installation
Linear actuator for quick return speed
45mm minimum stack height
Remote sold separately

Dimensions and Weight Refer to image below

Material 7075-T6 aluminum

Sealing Premium Trelleborg®

Keys & Bushings POM + 10% OF and POM + MOS2

Cable and housing Jagwire®

Warranty 5 years

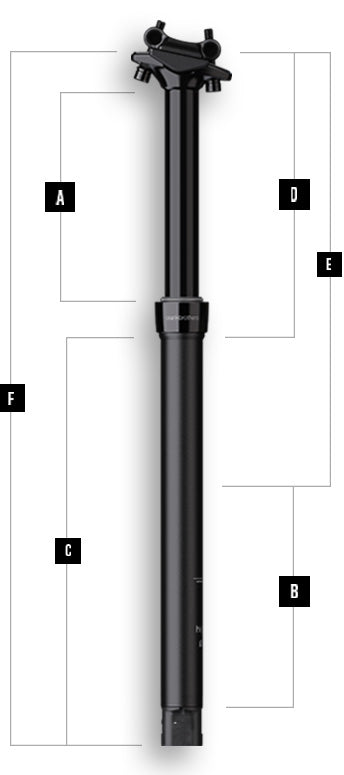

Highline 27.2 Size Guide

ATravel:	60mm	60mm	80mm	80mm	100mm	100mm	125mm
BMin. Insertion Length:	100mm	100mm	100mm	100mm	100mm	100mm	100mm
CMax. Insertion Length:	174mm	264mm	194mm	264mm	214mm	264mm	264mm
DMin. Extended Length:	121mm	121mm	141mm	141mm	161mm	161mm	186mm
EMax. Extended Length:	170mm	260mm	210mm	280mm	250mm	300mm	325mm
FTotal Post Length:	295mm	385mm	335mm	405mm	375mm	425mm	450mm
GMin. Stack Height:	47mm	47mm	47mm	47mm	47mm	47mm	47mm
HSetback:	0mm	0mm	0mm	0mm	0mm	0mm	0mm
JWeight:	376g	462g	403g	469g	429g	475g	483g

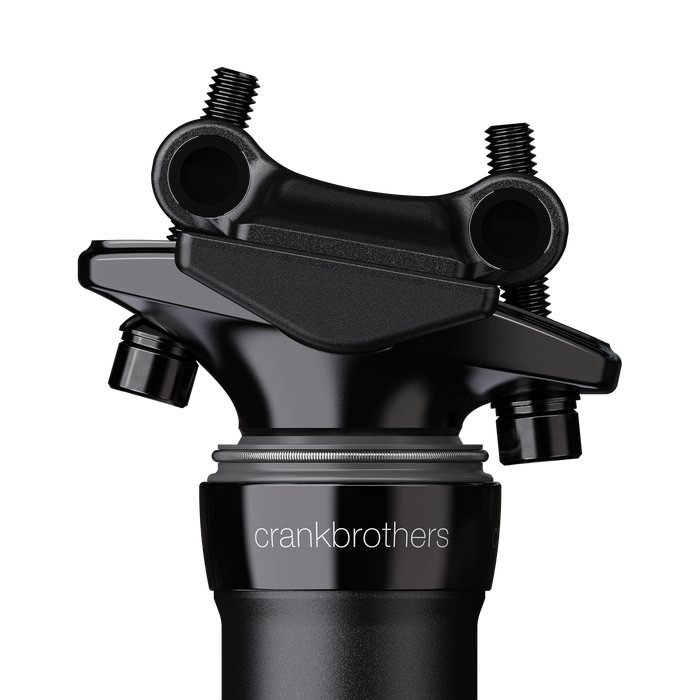

Low stack height

The distance between the seatpost collar and the seat rails is minimized, allowing riders with shorter legs or bikes with longer seat tubes to run longer-travel droppers. This adjustment means the saddle sits lower when fully compressed, providing more comfort and freedom of movement on the trail

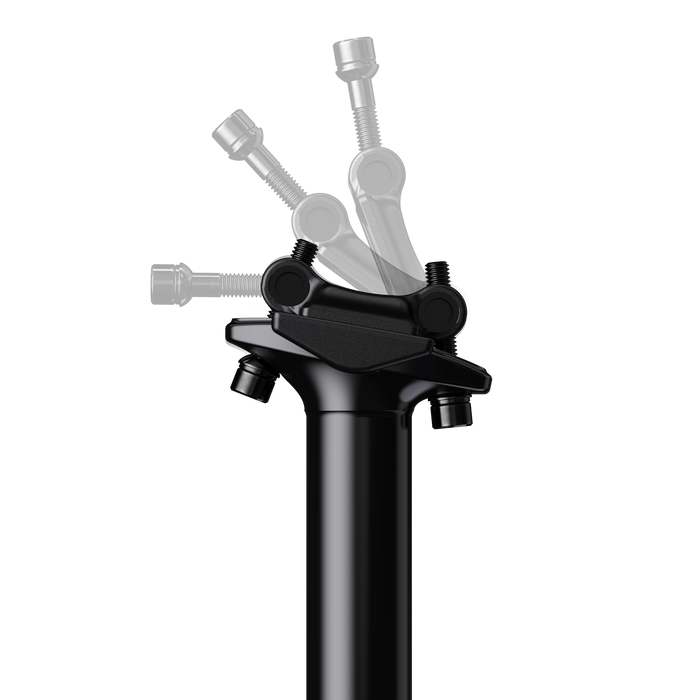

Head

The Highline’s two-bolt saddle clamp includes a quick-release rear bolt, allowing for easy installation and quick saddle adjustments. It has a 45 mm stack height measured from the collar base to the rail center when fully dropped.

US Mens	3*	4*	5	6	7	7.5	8	8.5	9	9.5	10	10.5	11	11.5	12	12.5	13	14
US Womens	4.5	5.5	6.5	7.5	8.5	9	9.5	10	10.5	11	11.5	12	12.5	13	13.5	14	14.5	15.5
EUR	35	36	37	38	39.5	40	41	41.5	42	43	43.5	44	44.5	45	46	46.5	47	48
UK	2	3	4	5	6	6.5	7	7.5	8	8.5	9	9.5	10	10.5	11	11.5	12	13
MM	220	228	235	242	252	256	262	265	270	275	280	283	286	290	295	300	305	310
